Mindray M9

Refurbished

Call to configure, special pricing available 317-759-9210

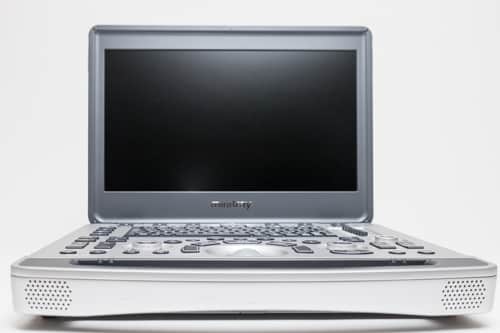

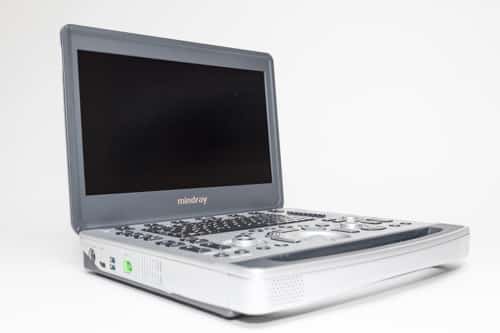

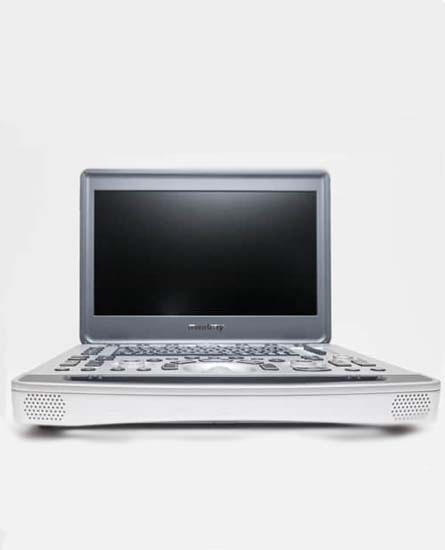

The refurbished Mindray M9 is Mindray’s most advanced portable ultrasound machine. It greatly enhances your diagnostic experience with color Doppler, advanced signal transmission, single-crystal ultrasound transducers for tremendously improved resolution and penetration.

The Mindray M9 is a high-end portable cardiac ultrasound machine and users can benefit from full cardiac features and measurement packages. This ultrasound machine is also known for its ability to offer great imaging in vascular and point of care applications.


The M9 outperforms the Mindray M7 and Mindray M5 in cardiac imaging. Its 3T ultrasound transducer technology allows for sharper images, better penetration, and color dynamic flow.

This ultrasound machine is very slim and lightweight making it one of the best portable machines. At 12.8 pounds the M9 is great for emergency care, critical care, and Anesthesia, along with vascular and cardiac.

The M9 features auto-measurements, multi-function keys, DICOM compatibility giving the user efficient results quickly and easily.

The Mindray M9 is a shared-service machine and is one of the best portable cardio-vascular ultrasound machines on the market. It offers optimal imaging with the following features:

  • Stress echo
  • Needle visualization
  • Compound imaging
  • Speckle Reduction imaging
  • EchoBoost cardiac imaging optimization
  • AutoIMT
  • Single Crystal Transducer with 3T technology
  • Tissue Tracking with Quantitative Analysis
Specifications
Active Probe Ports

1

Battery

Yes

CD/DVD-R

External

DICOM Options

Commitment, MPPS, Print, Query/Retrieve, Store, Structured Reports, Verify, Worklist

Dimensions

12.8 lbs, 15.5" x 14.25" x 2.3"

Ethernet

checked

Export Options

AVI, BMP, DICOM, JPG, RAW, TIFF, USB, WiFi

Features

Anatomical M-Mode, Auto Optimization, AutoIMT, B-Steer, Color Doppler, Compound Imaging, Contrast, CW Doppler, DICOM, Directional Color Power Doppler, Elastography, HPRF, LVO, M-Mode, Needle Visualization, Panoramic, Power Doppler, PW Doppler, SmartNT, Speckle Reduction, Stress Echo, Tissue Doppler, Tissue Harmonics

HDD Size

128GB

Imaging Modes

2D, 3D/4D

Max Cine Memory

000 Frames, 38

Max Frame Rate (FPS)

000, 1

Maximum Depth (cm)

40

Monitor

"15.6"" High Resolution LED"

Monitor Resolution

1920×1080

PC Export Formats

AVI, BMP, JPG, RAW, TIFF

Power (USA)

100-240V, 50/60 Hz

Primary Applications

Breast, Cardiac, General Imaging, OB/GYN, Vascular

SSD/HDD

SSD

Touchscreen

N/A

Trackball/Trackpad

Trackball

USB Ports

2

Video and Output Options

Audio, Composite Video, Ethernet, HDMI, S-Video, USB, VGA, Wireless

Wireless

Yes

Year Built

2013– Current

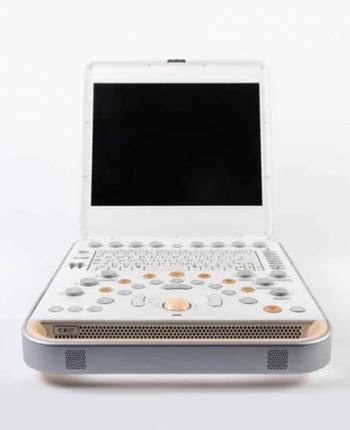

The M9 faces tough competition with the GE Vivid iq and Philips CX50 premium cardiovascular systems. This is a shared service system that excels in all areas and is a formidable competitor to the more expensive ultrasound machines from GE and Philips. We really like the versatility, power, image quality and features of the M9.

We recommend the Mindray M9 as a refurbished system, but the newer Mindray M8 Elite offers a very competitive price and is available as new with a long warranty.
