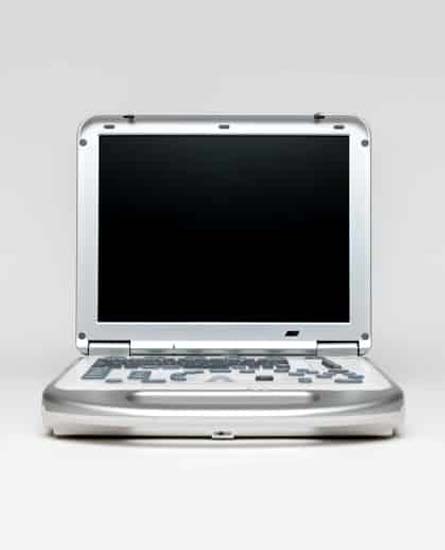

Mindray M7 Ultrasound Machine

Refurbished

Call to configure, special pricing available 317-759-9210

The refurbished Mindray M7 is a popular shared service portable ultrasound system. This is a laptop sized/clamshell style ultrasound machine that features advanced imaging features found in today’s mid-range portable ultrasounds. The Mindray M7 has long been a solid choice for those looking for reliable and good image quality in a portable package.


The refurbished Mindray M7 is one of the better mid-range portable ultrasound machines due to its very good penetration and color Doppler for vascular and general imaging. The M7 has solid image quality with its 15-inch high resolution TFT LCD with a 170-degree viewing angle.

Important key features for the Mindray M7 portable ultrasound machine:

  • Octal-beam imaging technology
  • Tissue harmonic imaging
  • iZoom for increased imaging accuracy
  • Tissue Doppler imaging (TDI)
  • Real-time 3D imaging
  • iClear speckle suppression
  • iBeam spatial compounding
  • iScape panoramic imaging

As a shared-service system, the Mindray M7 is very versatile and covers a wide range of clinical needs such as:

  • Vascular
  • Cardiac
  • OB/GYN
  • Abdomen
  • Venous (ablation, mapping)
  • MSK and Orthopedic
  • Mobile Ultrasound
  • Regional Anesthesia
  • Pain Management
  • Small Parts

This portable ultrasound machine also features technology that is suitable for cardiac applications, though it is less common.

Specifications
Active Probe Ports

1

Battery

Yes

CD/DVD-R

External

DICOM Options

MPPS, Print, Query/Retrieve, Store, Structured Reports, Worklist

Dimensions

14 lbs, 14" x 14" x 3"

Ethernet

checked

Export Options

BMP, DICOM, JPG, RAW, USB

Features

Anatomical M-Mode, Auto Optimization, Color Doppler, Color M-Mode, Compound Imaging, CW Doppler, DICOM, HPRF, IMT, M-Mode, Needle Visualization, Panoramic, Power Doppler, PW Doppler, Speckle Reduction, Stress Echo, Tissue Doppler, Tissue Harmonics

HDD Size

160GB

Imaging Modes

2D, 3D/4D

Max Cine Memory

8830 Frames

Max Frame Rate (FPS)

643

Maximum Depth (cm)

30

Monitor

"15"" High Resolution LCD"

Monitor Resolution

1024×768

PC Export Formats

AVI, BMP, JPG

Power (USA)

100-240V, 50/60 Hz

Primary Applications

Breast, Cardiac, General Imaging, OB/GYN, Vascular

SSD/HDD

HDD

Touchscreen

N/A

Trackball/Trackpad

Trackball

USB Ports

2

Video and Output Options

Audio, Composite Video, DVI, Ethernet, S-Video, USB

Wireless

Yes

Year Built

2010 – Current

The Mindray M7 performs great in general radiology and superficial imaging. Its vascular imaging provides terrific penetration and color Doppler. The M7 is one of the best portable ultrasound machines in its price range for deep 2D penetration and color Doppler for vascular applications. Although it’s an older system, it remains very popular and can be found at a good price.
