Sonosite Edge

Refurbished

Call to configure, special pricing available 317-759-9210

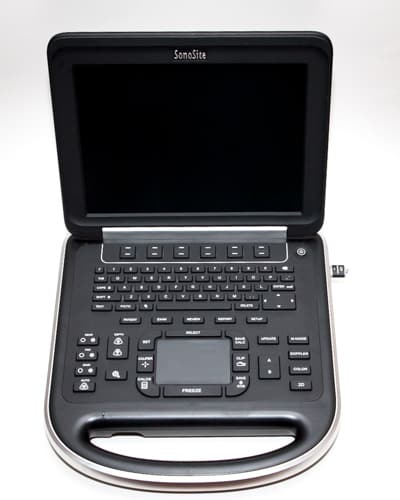

The refurbished Sonosite Edge portable ultrasound Machine has an entirely different feel from its predecessors: Sonosite M-Turbo, Micromaxx, and Titan. This durable machine is made with an aluminum core and magnesium shell making the product very strong and durable but maintaining a lightweight design (8.5 lbs/3.85 kg).

The Sonosite Edge also has a larger LCD screen (12.1″) which allows for much easier viewing. It is known for great image quality, ease-of-use and is great for Point-of-Care imaging.


The Sonosite Edge has a sleek and durable design, and is often more readily available than its successor the SonoSite Edge II. This ultrasound machine has advanced technology but is still very portable and easy to use. Some of the Sonosite Edge key features are as follows:

  • SonoADAPT Tissue Optimization
  • SonoHD2 Imaging Technology
  • Advanced Needle Visualization

The Sonosite Edge ultrasound machine is great for the following applications:

  • Cardiac
  • Vascular
  • OB/GYN
  • Emergency Medicine
  • Anesthesia
  • Point of Care (POC)

Specifications
Active Probe Ports

1

Battery

Yes

CD/DVD-R

N/A

DICOM Options

Commitment, MPPS, Print, Store, Worklist

Dimensions

13" x 12.5" x 2.5", 8.5 lbs

Ethernet

checked

Export Options

BMP, DICOM, JPG, MPEG, USB

Features

Auto Optimization, Compound Imaging, CW Doppler, DICOM, IMT, M-Mode, Needle Visualization, Power Doppler, PW Doppler, Speckle Reduction, Tissue Doppler, Tissue Harmonics, Velocity Color Doppler

HDD Size

8GB

Imaging Modes

2D

Max Cine Memory

255 Frames

Maximum Depth (cm)

35

Monitor

"12.1"" LCD"

PC Export Formats

BMP, JPG, MPEG

Power (USA)

100-240V, 50/60 Hz

Primary Applications

Anesthesia, Cardiac, Emergency Medicine, General Imaging, OB/GYN, Vascular

SSD/HDD

Flash

Touchscreen

N/A

Trackball/Trackpad

Trackpad

USB Ports

2

Video and Output Options

Composite Video, DVI, S-Video, Wireless

Wireless

Yes

Year Built

2011– Current

Probe Type of Array Bandwidth
Sonosite C60x Convex 2.0-5.0 MHz
Sonosite HFL38x Linear 6.0-13.0 MHz
Sonosite HFL50x Linear 6.0-15.0 MHz
Sonosite ICTx Microconvex 5.0-8.0 MHz
Sonosite L25x Linear 6.0-13.0 MHz
Sonosite L38x Linear 5.0-10.0 MHz
Sonosite L38xi Linear 5.0-10.0 MHz
Sonosite P21x Convex 1.0-5.0 MHz

We believe the Sonosite Edge is one of the best portable ultrasound machines on the market. Sonosite improved its technology with the Edge but still managed to keep its ease-of-use and durability that they are so well-known for. The Sonosite Edge is a durable and advanced ultrasound machine for a great price.

“Point of Care” ultrasound machine refers to the rapidly growing group of clinicians performing and interpreting ultrasound at the bedside. This includes surgery, emergency medicine, Intensive Care (ICU) and musculoskeletal care. “Point of Care” ultrasounds provide rapid diagnosis, visualization of tissue, and needle visualization for procedures at bedside. Some medical schools are providing ultrasound machines to their students to carry around during their clinical rotations.

This improves your ability to see a needle in tissue. Ultrasounds designed for needle guidance use a beam-steering technology to steer ultrasound beam perpendicular to the needle, thereby improving visualization of the needle.

Yes, we sell a lot of refurbished SonoSite systems to physicians using a portable ultrasound for needle-guided procedures.

No, any ultrasound can do this, however, every bit of optimization technology that can be used is helpful in guiding a needle.

SonoMB on SonoSite ultrasound machines is also known as compound imaging. It allows the ultrasound transducer to see from multiple lines of site at different angles, as opposed to the standard line-of-site that’s perpendicular to the transducer lens. The result is a better-defined image with reduced artifact.

SonoADAPT is an automatic tissue optimization feature, which automatically adjusts gain and other imaging controls, which increases image quality and improves efficiency.

This is most commonly known as a speckle reduction imaging enhancement package offered on ultrasound machines. It uses a special software algorithm to enhance tissue definition and eliminate artifact (speckle) within the image.

You can find the Edge brochure below. Probo Medical has a large inventory of owner’s manuals and brochures, contact us today for more information.

Part 1 of the SonoSite Edge ultrasound training series provides an overview of the ultrasound machine and an introduction to how it works. While the SonoSite Edge ultrasound is relatively easy-to-use, most folks benefit from viewing these videos and finding some hidden gems.

Although you can view each video in this series individually, it helps to view them sequentially, because each video builds on what you learned in the previous part.

 Part 2 introduces you to how imaging with the SonoSite Edge ultrasound. Included in this section is saving images, cine review, making measurements and annotating images.

Although you can view each video in this series individually, it helps to view them sequentially, because each video builds on what you learned in the previous part.

The Edge has Color/Power/PW/CW Doppler modes as a shared service setup. This section of the training discusses how to use the various modes and make adjustments to the regions of interest.

As with other SonoSite ultrasound machines, there are not a considerable amount of customizations that can be made. For the most part, what you see is what you get. However, there typically are some things you’ll want to do to set your machine to your own preferences. This is also the video you’ll want to watch to learn about connectivity to a Network or DICOM server.

Our final installation of the SonoSite Edge training Series  shows how to review the images, measurements, and export reports and images via a USB on the SonoSite Edge portable ultrasound machine.
