Philips iU22

Refurbished

Call to configure, special pricing available 317-759-9210

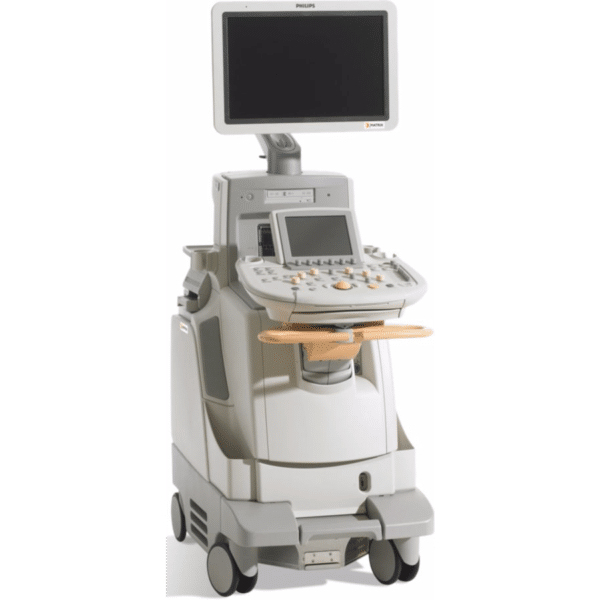

The refurbished Philips iU22 shared service ultrasound machine, launched in 2004, has had a long history of improvements and revisions that have made it the gold standard for over a decade. The Philips iU22 for sale is equipped with xMatrix transducers (at certain hardware and software levels) and 4D obstetric, giving you advanced features at a reasonable cost.

As a shared service system, the iU22 can perform cardiac, radiology, vascular, OB/GYN, and specialty imaging applications, such as pediatric, MSK, and elastography (consider the slightly better equipped Philips iE33 for cardiovascular-specific applications). The Philips iU22 was replaced by the modernized Philips Epiq 5, however the iU22 continues to be the popular choice due to its affordable price range for physicians who need high image quality.


Those who are familiar with Philips systems prefer the iU22’s great image quality and its overall value in regard to price range and performance.

The Philips iU22 system features the following key benefits to the ultrasound machinery:

  • 3D/4D imaging
  • XMatrix technology (on some versions)
  • 17′ LCD touchscreen monitor
  • Tissue Doppler (Velocity) Imaging
  • Stress Echo
  • Contrast Imaging
  • Compound Imaging
  • Speckle Reduction Imaging (SRI)
  • Scan Assistant
Specifications
Active Probe Ports

3

Battery

No

CD/DVD-R

Yes

DICOM Options

Commitment, MPPS, Print, Store, Structured Reports, Worklist

Dimensions

320 lbs, 60" x 22.5" x 44.5"

Ethernet

checked

Export Options

DICOM, JPG, USB

Features

3D/4D, 3D/4D Cardiac, Auto Optimization, CD/DVD-R Drive, Color Doppler, Compound Imaging, Contrast, CW Doppler, DICOM, Elastography, HPRF, IMT, M-Mode, Panoramic, Power Doppler, PW Doppler, Shear Wave Elastography, Speckle Reduction, STIC, Strain, Stress Echo, TEE, Tissue Doppler, Tissue Harmonics

HDD Size

160GB

Imaging Modes

2D, 3D/4D

Max Cine Memory

2, 200 Frames

Max Frame Rate (FPS)

500

Maximum Depth (cm)

35

Monitor

"17"" High Resolution LCD"

Monitor Resolution

1280×1024

PC Export Formats

AVI, JPG

Power (USA)

100-240V, 50/60 Hz

Primary Applications

Breast, General Imaging, OB/GYN, Vascular

Software Revisions

A-Cart, D-Cart, F-Cart, G-Cart, Vision 2007, Vision 2008, Vision 2009, Vision 2010, Vision 2011, Vision 2012

SSD/HDD

HDD

Touchscreen

8.4"

Trackball/Trackpad

Trackball

USB Ports

4

Video and Output Options

Audio, Composite Video, DVI, S-Video, VGA

Wireless

No

Year Built

2004-2014

Probe Type of Array Bandwidth
Philips C10-3V Endovaginal 3.5-5.0 MHz
Philips C5-1 Convex 1.0-5.0 MHz
Philips C5-2 Convex 2.0-5.0 MHz
Philips C8-4v Convex 4.0-8.0 MHz
Philips C8-5 Convex 5.0-8.0 MHz
Philips L12-3 Linear 3.0-12.0 MHz
Philips L12-5 Linear 5.0-12.0 MHz
Philips L9-3 Linear 3.0-9.0 MHz
Philips S4-2 Sector 1.8-4.2 MHz
Philips S5-1 Sector 1.0-5.0 MHz
Philips V6-2 Convex 2.0-6.0 MHz
Philips X5-1 Sector 1.0-5.0 MHz

At one time, the Philips iU22 was considered by some as the best ultrasound machine on the market for radiology needs. It has since become an end-of-life product for Philips, however, we still refurbish, sell, and have parts and probes for the iU22.

The iU22 becomes increasingly scarce over the years, and is considered best for those with extremely limited resources and budgets. Consider an Epiq 5 or Affiniti model in place of the iU22 for something a little more recent.
