GE Logiq P9

Refurbished

Call to configure, special pricing available 317-759-9210

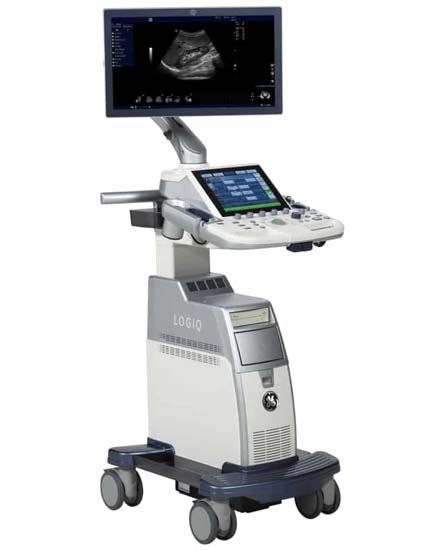

The refurbished GE Logiq P9 is a lightweight, bedside, mid-range ultrasound system that is the replacement to the Logiq P6. The GE Logiq P9 for sale is a full-featured, multi-purpose diagnostic ultrasound that is suitable for medical clinicians who require comprehensive application coverage, consistent image quality, and ease of use that enables timely for making confident decisions. This point-of-care ultrasound machine is a full shared-service system with cardiac, stress echo, tissue Doppler, tissue velocity, elastography and live 3D/4D obstetric imaging.

Read More

The P9 is a versatile ultrasound machine that provides the user with advanced ergonomics through its lightweight design and mobility, allowing it to move from room-to-room with ease.

The GE Logiq P9 Premiere system features the following integral benefits to the ultrasound machinery:

  • Live 3D/4D obstetric imaging
  • Speckle Reduction Imaging (SRI HD)
  • Coded Harmonics Imaging
  • 21.5″ LCD touchscreen
  • Tissue Doppler (Velocity) Imaging
  • Contrast Imaging
  • Strain-based Elastography
  • Spatial Compounding (CrossXbeam)
  • Scan Assistant
  • Auto IMT
  • AutoEF
  • Elastography
  • Elastography Quantification1
  • Advanced 3D with 3D Landscape
  • DICOM 3.0 Connectivity
  • LOGIQ View
  • B-Flow/B-Flow Color
  • CF/PDI Quantification
  • Coded Contrast Imaging2
  • Measure Assist Breast
  • Measure Assist OB
  • Breast Productivity Package
  • Thyroid Productivity Package
  • B Steer+
  • Stress Echo
  • Tissue Velocity Imaging (TVI) with Q-Analysis
  • Scan Assistant
  • Compare Assistant
  • Report Writer
  • ECG

Specifications
Active Probe Ports

Battery

Yes

CD/DVD-R

Yes

DICOM Options

Commitment, MPPS, Print, Query/Retrieve, Store, Structured Reports, Verify, Worklist

Dimensions

132 lbs, 62" x 17" x 27"

Ethernet

checked

Export Options

AVI, DICOM, JPG, MPEG, USB, WMV

Features

3D/4D, AFI Cardiac Strain, Anatomical M-Mode, Auto Optimization, AutoDoppler, B-Steer, Color M-Mode, Compound Imaging, CW Doppler, DICOM, Directional Color Power Doppler, Elastography, M-Mode, Panoramic, Power Doppler, PW Doppler, Scan Assistant, Speckle Reduction, STIC, Tissue Doppler, Tissue Harmonics, Virtual Convex

HDD Size

350GB

Imaging Modes

2D, 3D/4D

Max Cine Memory

776MB

Maximum Depth (cm)

33

Monitor

"21.5"" High Resolution Widescreen LCD"

PC Export Formats

AVI, JPG, MPEG, WMV

Power (USA)

100-240V, 50/60 Hz

SSD/HDD

HDD

Touchscreen

10.4"

Trackball/Trackpad

Trackball

USB Ports

7

Video and Output Options

Audio, Composite Video, HDMI, S-Video, USB, Wireless

Wireless

Adapter

Year Built

2015-Current

Probe Type of Array Bandwidth
GE 12L-RS Linear 4.0-13.0 MHz
GE 3Sc-RS Sector 1.3-4.0 MHz
GE 6S-RS Sector
GE 8C-RS Convex 4.0-11.0 MHz
GE 9L-RS Linear 4.0-10.0MHz
GE C1-5-RS Convex 1.5-5.0 MHz
GE E8C-RS Microconvex 4.0-11.0 MHz
GE L10-22-RS Linear 10.0-22.0 MHz
GE L8-18i-RS Linear 6.7-18.0 MHz
GE ML6-15-RS Linear 4.0-15.0 MHz
GE P8D Pencil 8.0 MHz
GE RAB2-6-RS Convex 2.0-6.0 MHz

The Logiq P9 is considered a high-end, upgraded version of the P5, although these systems are not molded from the same body. The P9 is more powerful and has newer hardware, operating system, beamformers, easier to use and transport, and is more advanced in nearly every fashion. This ultrasound machine is advertised as a Point-of-Care (or bedside) ultrasound machine but is a good choice for offices and hospitals in need of a small-footprint at a economical price.

The Logiq P series ultrasound machines are designed for mobility and are considered low- to mid-range console ultrasound machines. These are powerful, however, and would compete with most mid-high range portable ultrasound machines.

Yes, this is a very versatile shared-service ultrasound machine that can even do stress echo studies for full echocardiograms.

The My Trainer software on the Logiq P9 is on-board training with video walk-throughs for common functionality and knobology on the Logiq P9 cart-based ultrasound machine.

CrossXBeam on the GE Logiq P9 is also known as compound imaging. It allows the ultrasound transducer to see from multiple lines of site at different angles, as opposed to the standard line-of-site that’s perpendicular to the transducer lens.

SRI HD on the refurbished Logiq P9 portable ultrasound machine uses a special software algorithm to identify body tissue and eliminate artifact. The “HD” is added to SRI to note that it’s a newer version of the Speckle Reduction technology with improved image quality. The result provides a clearer image with reduced artifact.

The Scan Assitant on GE Ultrasound machines reduces scan time by automatically stepping the user through the steps of an exam. In doing so, it has shown to eliminate up to 78% of keystrokes. General Electric’s Scan Assistant initiates and completes required measurements, automatically steers color Doppler, sets up imaging controls and modes, inserts comments, and automatically re-orders images based on the user’s preference.

Yes, the GE Logiq P9 has wired and wireless connectivity. However, you’ll need to let your Probo Medical representative know in advance that you’ll need DICOM if you want to send your images to a PACS system or radiologist for review.

Yes, the P9 has a 4D volumetric transducer available for 4D “babyface” obstetric imaging.

You can find the GE Logiq P9 brochure below. Probo Medical has a large inventory of owner’s manuals and brochures, contact us today for more information.
