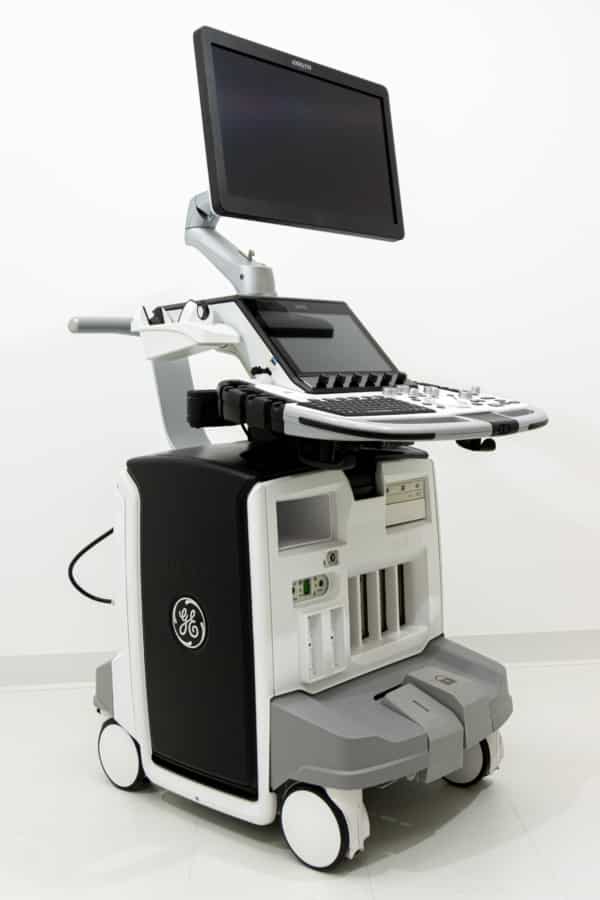

GE Logiq E10 Ultrasound Machine

Refurbished

Call to configure, special pricing available 317-759-9210

The refurbished GE Logiq E10 ultrasound machine represents a relatively large improvement over the very popular (and very good) GE Logiq E9.

While the Logiq E9 was among the best systems when it was released, the Logiq E10 takes advantage of the latest technologies to improve speed, penetration, image resolution, and ergonomics. It is also among the most secure ultrasound machines, making it popular with IT departments everywhere.

As a truly premium ultrasound machine, the Logiq E10 is very pricey, however, as a refurbished system prices are significantly lower than the price of a new Logiq E10.


The most important and impactful technologies on the GE Logiq E10 include the “cSound Architecture”, which is a fancy way of describing the combination of single-crystal probes, improved processing power, and optimized software. The two other most important features include cybersecurity (including Windows 10) and artificial intelligence technology.

Those technologies pair with well-engineered software and design that greatly improve efficiency and workflow, which make this an ideal ultrasound in high volume environments.

For more specialized procedures, the E10 includes rare technologies: ShearWave elastography, contrast cardiac imaging, 4D with HDlive, ultrasound guided attenuation parameter, contrast microvascular imaging, contrast enhanced imaging, 3D GPS Fusion Imaging, and shared service capabilities.

Specifications
Active Probe Ports

3

Battery

No

CD/DVD-R

Yes

DICOM Options

Commitment, MPPS, Print, Store, Structured Reports, Worklist

Dimensions

320 lbs, 60" x 22.5" x 44.5"

Ethernet

checked

Export Options

DICOM, JPG, USB

Features

3D/4D, 3D/4D Cardiac, Auto Optimization, CD/DVD-R Drive, Color Doppler, Compound Imaging, Contrast, CW Doppler, DICOM, Elastography, HPRF, IMT, M-Mode, Panoramic, Power Doppler, PW Doppler, Shear Wave Elastography, Speckle Reduction, STIC, Strain, Stress Echo, TEE, Tissue Doppler, Tissue Harmonics

HDD Size

160GB

Imaging Modes

2D, 3D/4D

Max Cine Memory

2, 200 Frames

Max Frame Rate (FPS)

500

Maximum Depth (cm)

35

Monitor

"17"" High Resolution LCD"

Monitor Resolution

1280×1024

PC Export Formats

AVI, JPG

Power (USA)

100-240V, 50/60 Hz

Primary Applications

Breast, General Imaging, OB/GYN, Vascular

Software Revisions

A-Cart, D-Cart, F-Cart, G-Cart, Vision 2007, Vision 2008, Vision 2009, Vision 2010, Vision 2011, Vision 2012

SSD/HDD

HDD

Touchscreen

8.4"

Trackball/Trackpad

Trackball

USB Ports

4

Video and Output Options

Audio, Composite Video, DVI, S-Video, VGA

Wireless

No

Year Built

2004-2014

We evaluated a refurbished GE Logiq E10 among the best machines in the industry.

When evaluating a premium ultrasound machine, the expectations are high. The Logiq E10 did not disappoint. In creating the video, we tried to tone it down and remove the excitement over how impressed we were with the Logiq E10.

From the first moment of using this machine, we knew this machine lives up to its premium status. Our customers report the same experience and agree that this machine has excellent image quality and improves their efficiency and confidence in their diagnoses.
