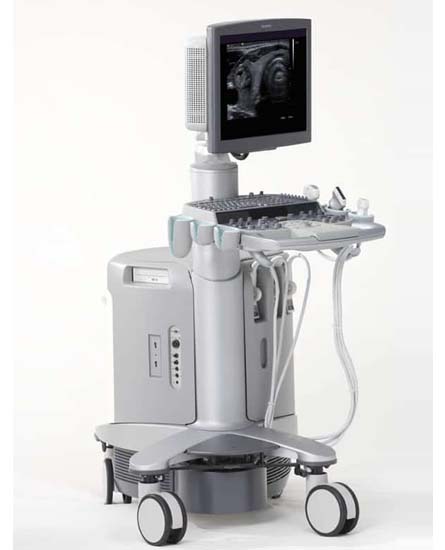

Acuson S2000 Ultrasound Machine - Probo Medical

Refurbished

Call to configure, special pricing available 317-759-9210

The refurbished Acuson S2000 (also offered as the HELX Evolution with Touch Control) is Siemens’ premium General Imaging and Women’s Health ultrasound machine. With a touchscreen interface, it’s intended to provide an efficient, ergonomic experience with advanced imaging technologies.

With an intuitive, user-centric interface, the used Siemens Acuson S2000 streamlines workflow that eliminates keystrokes and reduces repetitive motions that can cause Repetitive Stress Injuries.

Price starting at $4,700


  • eSieScan workflow protocols
  • ABVS Automated Breast Volume Scanner for automated 3D and hand-held imaging of the breast
  • 12.1-inch high-resolution display with Instant Response technology allows for precise key selections
  • Digital and tactile keyboards for workflow flexibility
  • HD transducer technology for better contrast resolution and improved image quality.

Specifications
Active Probe Ports

3

Battery

No

CD/DVD-R

Yes

DICOM Options

MPPS, Print, Query/Retrieve, Store, Structured Reports, Worklist

Dimensions

365 lbs, 51.2" x 24.5" x 110.3"

Ethernet

checked

Export Options

AVI, DICOM, JPG

Imaging Modes

2D, 3D/4D

Max Cine Memory

400 Frames

Max Frame Rate (FPS)

215

Maximum Depth (cm)

30

Monitor

"19"" High Resolution LCD"

Monitor Resolution

1280×1024

PC Export Formats

AVI, JPG

Power (USA)

115V 50/60 Hz

SSD/HDD

N/A

Touchscreen

N/A

Trackball/Trackpad

Trackball

USB Ports

2

Video and Output Options

Ethernet, USB, VGA

Wireless

No

Probe Type of Array Bandwidth
Acuson 10V4 Sector 4.0-10.0 MHz
Acuson 14L5 Linear 5.0-14.0 MHz
Acuson 14L5 SP Linear 5.0-14.0 MHz
Acuson 18L6 HD Linear 5.5-18.0 MHz
Acuson 4C1 Convex 1.0-4.5 MHz
Acuson 4P1 Sector 1.0-4.5 MHz
Acuson 4V1 Sector 1.0-4.5 MHz
Acuson 4V1c Sector 1.0-4.5 MHz
Acuson 6C1 Convex 1.5-6.0 MHz
Acuson 6C2 Convex 2.0-6.0 MHz
Acuson 7CF2 Convex 2.0-7.0 MHz
Acuson 8V3 Sector 2.5-8.0 MHz
Acuson 9EVF4 Sector 4.0-9.0 MHz
Acuson 9L4 Linear 4.0-9.0 MHz
Acuson CW2 Convex 2.0 MHz
Acuson CW5 Convex 5.0 MHz
Acuson EC9-4 Endocavity 3.75-9.0 MHz
Acuson EV-8C4 Endovaginal 4.0-9.0 MHz
Acuson V5Ms Transesophageal (TEE) 3.0-7.0 MHz
Acuson V7M Transesophageal (TEE) 4.0-8.0 MHz

The Acuson S2000 ultrasound system is a top of the line model that can handle a wide array of applications from abdominal to vascular to OB/GYN and more. This advanced system offers 2D, 3D, 4D and Doppler imaging. While it is not well-known as a popular ultrasound in the United States, it has a solid following internationally because of its high quality image results.

Siemens has assigned the brand Acuson to all of its ultrasound products. This was once named the Siemens S2000.

You can find the Acuson S2000 brochure below. Probo Medical has a large inventory of owner’s manuals and brochures, contact us today for more information.

Inquire about this Ultrasound Machine

More Equipment from Acuson
Acuson S2000 Ultrasound Machine FAQs
