GE Vivid S70

Refurbished

Call to configure, special pricing available 317-759-9210

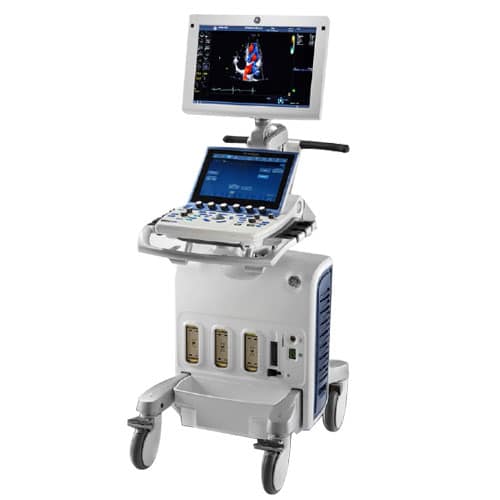

The refurbished GE Vivid S70 advanced cardiovascular machine provides great image quality, solid frame rates, and great technology in a small package and competitive price.

With its cSound architecture, the Vivid S70 is considered by some as a near-premium ultrasound machine because of its available single-crystal probes. For those who don’t have the need or budget for GE’s premium E-series Vivid ultrasound machines or Philips Epiq ultrasounds, the S70 provides similar technologies and power for a lower price.


Two of the most notable features on the refurbished GE Vivid S70 are its cSound Architecture and 4D TEE capabilities.

cSound is generally reserved for GE’s Expert (E-series) of ultrasound machines, but is offered on the S70 to make it a very competitive system in this price range. The cSound architecture offers improved hardware and software features including single-crystal probes. Single crystal transducers provide better resolution and penetration over standard transducers. The key differences between the S70 and more advanced E-series systems comes down to hardware and processing. The E-series are larger machines that offer more single-crystal probes, higher frame rates, and more premium features and performance.

The 19″ wide HD LCD monitor and the 12” wide touchscreen provide good ergonomics. Its compact size and battery backup allow for easy transport the ultrasound shutting down the ultrasound system.

This refurbished ultrasound machine can also serve as a limited shared-service machine while providing advanced cardiovascular functions and stress echo.

• Tissue synchronization imaging

• Intima Media Thickness (IMT)

• CW Doppler

• Strain/Strain Rate Mode (option, enabled by Advanced QScan)

• Tissue Synchronization Imaging Mode (option, enabled by Advanced QScan)

• B-flow

• 2D stress

• Auto EF

• Automated Function Imaging (AFI)

• Automated Ejection-Fraction Calculation (AutoEF)

• Contrast Low MI(Research only)

• 4D Mitral Valve Assessment (Only works on stored patient data)

• Z-Scores

• Quantitative Analysis Package (Q-Analysis)

• EchoPAC™/Patient Archive

• Insite™ Express Connection (ExC) Enables Remote Service and Training

• Advanced 4D Options

Specifications
Active Probe Ports

5

Battery

Optional

CD/DVD-R

Yes

DICOM Options

Commitment, MPPS, Print, Query/Retrieve, Store, Structured Reports, Verify, Worklist

Dimensions

161 lbs, 21.5" x 30" x 60"

Ethernet

checked

Export Options

AVI, DICOM, JPG, MPEG, RAW, USB

Features

4D TEE, AFI, Anatomical M-Mode, Auto EF, Auto Optimization, AutoIMT, Blood Flow Imaging, CD/DVD-R Drive, Color M-Mode, Compound Imaging, cSound Performance, Curved Anatomical M-Mode, M-Mode, PW Doppler, Quantitative Analysis, Scan Assistant, Speckle Reduction, Strain, Strain Rate, Stress Echo, Tissue Doppler, Tissue Harmonics, Tissue Synchronization, Tissue Velocity M-Mode

HDD Size

500GB

Imaging Modes

2D, 3D/4D

Max Cine Memory

2GB

Max Frame Rate (FPS)

1500

Maximum Depth (cm)

36

Monitor

"19"" Widescreen High Definition LCD"

Monitor Resolution

1680×1050

PC Export Formats

AVI, JPG, MPEG

Power (USA)

100-240V, 50/60 Hz

SSD/HDD

HDD

Touchscreen

12"

Trackball/Trackpad

Trackball

USB Ports

5

Video and Output Options

Audio, Composite Video, DVI, Ethernet, USB

Wireless

No

Year Built

2015-Current

Probe Type of Array Bandwidth

It’s hard to beat the price and performance of this Vivid S70 ultrasound machine. There are few ultrasound machines available at this excellent price that include single crystal probes.

That being said, the limited number of probes available limit the versatility of this machine. Specifically, for each modality it does not offer a broad range of transducers that you would normally find on a mid-upper end ultrasound machine. For those looking for a higher-end refurbished cardiovascular ultrasound machine, the Vivid S70 is something that should be a top consideration. For those needing something a little more versatile, they’ll need to look into mid-range Philips systems or a GE Vivid E-series ultrasound machine.

Speckle Reduction Imaging on the Vivid S70 ultrasound machine uses a software algorithm to identify body tissue and eliminate artifact. The result provides a clearer image with reduced artifact.

Yes, the Vivid S70 can export images to an its integrated DVD/CW RW, Flash memory, or DICOM network for images, backup, and patient data.

Yes, the Vivid S70 has Triplex imaging for Spectral, Color, and 2D simultaneous imaging.

Ultrasounds designed for needle guidance use ultrasound beam-steering to improve overall visualization of the needle.

cSound on the Vivid S70 is a beamforming technology that uses software instead of hardware in order to render a more complete and lower-artifact image of the heart in 2D, 3D, and 4D imaging

You can find the GE Vivid S70 brochure below. Probo Medical has a large inventory of owner’s manuals and brochures, contact us today for more information.
