Mindray Z60

NewRefurbished

Call to configure, special pricing available 317-759-9210

Probo Medical is an Authorized distributor for Mindray North America

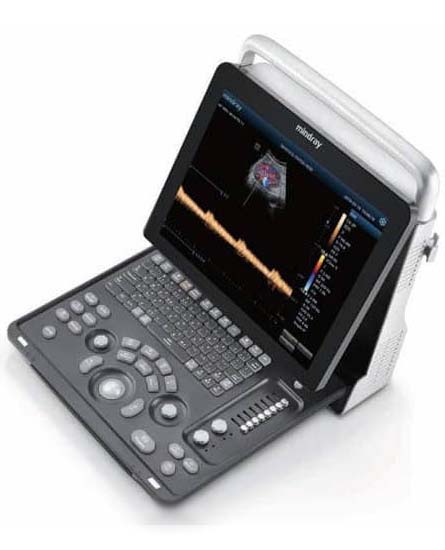

The Mindray Z60 is a portable shared service ultrasound machine that can be used in various practices and can be applied to adults, pregnant women, and pediatric patient applications such as OB/GYN, 3D/4D, MSK, intra-operative, and small parts. The Point of Care Mindray Z60 for sale comes equipped with innovative software packages and the latest transducer technologies that will provide you with efficient workflow at a great price.

The Z60 delivers ergonomic solutions through its configurations to improve user workflow and diagnostic accuracy to expand your clinical capabilities and meet your evolving professional needs. Probo Medical is a Mindray Authorized Distributor of new DZ60 portable ultrasound machines that are covered with a 3-year warranty.

Read More

The Mindray Z60 system features the following key benefits to the ultrasound machinery:

  • Dynamic Beam Forming
  • iBeam Compound Imaging
  • iClear Speckle Reduction Imaging
  • 3D/4D Options
  • iStation Patient Data Management
  • Smart Face
  • Smart OB
  • iTouch Auto Optimization
  • Tissue Harmonic Imaging (PSHI)
  • Tissue Specific Imaging (TSI)
  • IMT (Intima-Media Thickness)
  • 15” full screen LCD

Specifications
Active Probe Ports

Battery

Yes

CD/DVD-R

External

DICOM Options

MPPS, Print, Query/Retrieve, Store, Structured Reports, Worklist

Dimensions

147 x 361 x 358mm, 8.2Kg

Ethernet

checked

Export Options

BMP, DICOM, JPG, TIFF

Imaging Modes

2D, 3D/4D

Max Cine Memory

6197 Frames

Max Frame Rate (FPS)

57847

Maximum Depth (cm)

38.8

Monitor

"15"" High Resolution LCD"

Monitor Resolution

1024×768

PC Export Formats

AVI, BMP, JPG, TIFF

Power (USA)

100-240V, 50/60 Hz

SSD/HDD

HDD

Touchscreen

N/A

Trackball/Trackpad

Trackball

USB Ports

4

Video and Output Options

Ethernet, S-Video, USB, VGA

Wireless

No

Probe Type of Array Bandwidth
Mindray 2P2P Sector
Mindray 6C2P Convex
Mindray 6CV1P Endocavity
Mindray 6LE7P Linear
Mindray 7L4BP Linear
Mindray 7L5P Linear
Mindray 7LT4P Linear
Mindray C6-2P Convex
Mindray CB10-4P Convex
Mindray D6-2P Volume Curved
Mindray L14-6P Linear
Mindray P7-3P Sector 2.0-8.0 MHz
Mindray V10-4BP Convex

The Z60, which Probo Medical sells new or refurbished, is a popular and solid choice for those on a tight budget and need portability. It’s a very versatile system, running 14 probes including 3D/4D transducers and a biplane probe. Its battery is rated up to 100 minutes, and is also relatively lightweight compared to similar systems in the market.

We like the Mindray products a great deal because of their stability, image quality and affordability. This combination makes all of their systems a top choice in most ultrasound arenas. When purchased new, they provide an excellent alternative to the more expensive products from larger manufacturers.

PSH provides better contrast resolutions for clearer images with less noise.

Auto IMT provides automatic measurement of anterior and posterior wall thickness that delivers the most accurate carotid status.

The Z60 can be used with a variety of transducers, including convex, endocavity, linear and phased array

Probo Medical is looking to purchase qualified ultrasound systems that can be fully refurbished and restored to exceed OEM specifications. To learn more about selling us your machine, please contact us for a free price quote.

You can find the Mindray Z60 brochure below. Probo Medical has a large inventory of owner’s manuals and brochures, contact us today for more information.
